构建图并可视化#
在完成 添加节点 和 添加边 后,就可以继续完成图引擎的生成。
指定入口节点#
首先,调用 set_entry_point() 方法,指定图中唯一的入口节点(entry point)。入口节点是图运行时的起始节点,必须已通过 add_node() 添加。
builder = GraphBuilder(state_schema=MyStateSchema)
builder.add_node("start_node", MyNode(), action_mode="any")
builder.set_entry_point("start_node")
备注
入口节点可以有前驱节点。但运行时会从入口节点向后运行,无法触发前驱节点。
构建图实例#
通过 build() 方法构建图实例。构建完成可得到 run 模式的 GraphEngine 或 debug 模式的 GraphEngineDebugger。
graph = builder.build(
auto_conn_end=True,
max_turn=100,
timeout=60,
graph_mode="run",
)
主要参数说明:
auto_conn_end: bool,是否自动将所有无后继节点连接到内置END节点,默认True。max_turn: int,图最大运行轮数,用于防止无限循环。timeout: int,单个节点运行的超时时间(秒)。graph_mode: str,图的运行模式,run表示执行模式,debug表示调试模式。db_file_path: str,持久化数据库文件路径,用于在调试模式下存储状态快照。db_name: str,数据库名称。
可视化图结构#
EvoFabric 支持在构建完成后可视化图结构,便于调试和理解节点之间的执行关系。使用 draw_graph() 方法可以生成图的可视化表示。
from typing import Annotated, List
from pydantic import BaseModel
from evofabric.core.graph import GraphBuilder
from evofabric.core.typing import AssistantMessage
class State(BaseModel):
messages: Annotated[List, "append_messages"]
node_output: Annotated[str, "overwrite"]
def node_a(state):
return {"messages": [AssistantMessage(content="node a output")], 'node_output': 'a'}
def node_b(state):
return {"messages": [AssistantMessage(content="node b output")], 'node_output': 'b'}
def node_c(state):
return {"messages": [AssistantMessage(content="node c output")], 'node_output': 'c'}
def node_d(state):
return {"messages": [AssistantMessage(content="node d output")], 'node_output': 'd'}
graph = GraphBuilder(state_schema=State)
graph.add_node("a", node_a)
graph.add_node("b", node_b)
graph.add_node("c", node_c)
graph.add_node("d", node_d)
graph.add_edge("a", "b")
graph.add_edge("b", "c")
graph.add_edge("a", "d")
graph.add_edge("d", "c")
graph.set_entry_point("a")
graph = graph.build()
graph.draw_graph()

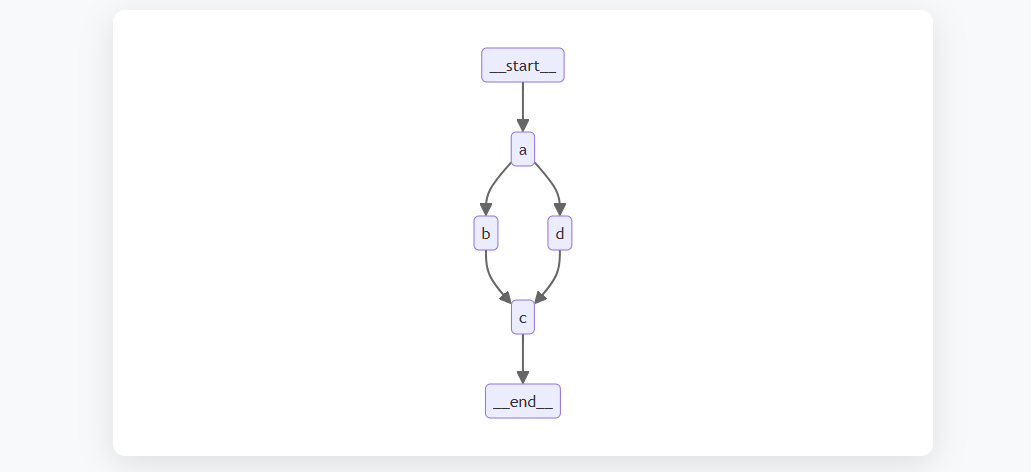

画图结果:
